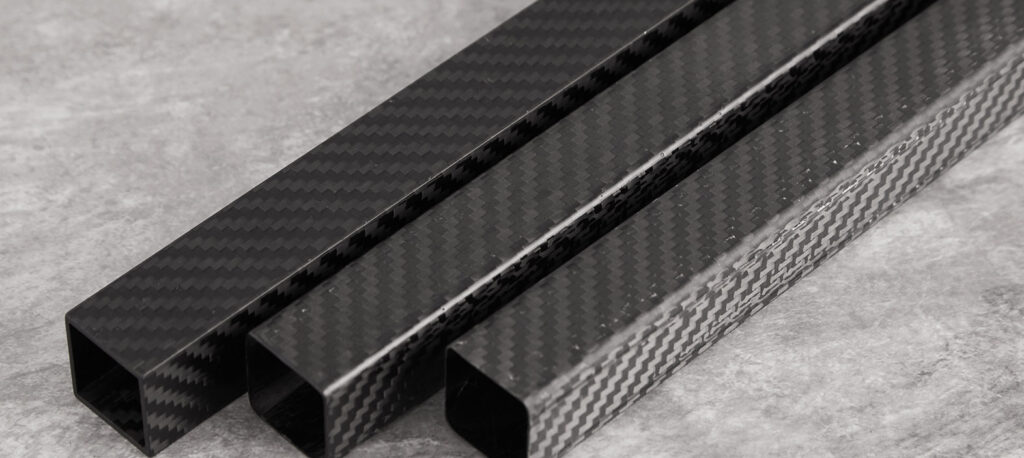

Carbon Fiber Square Tubes

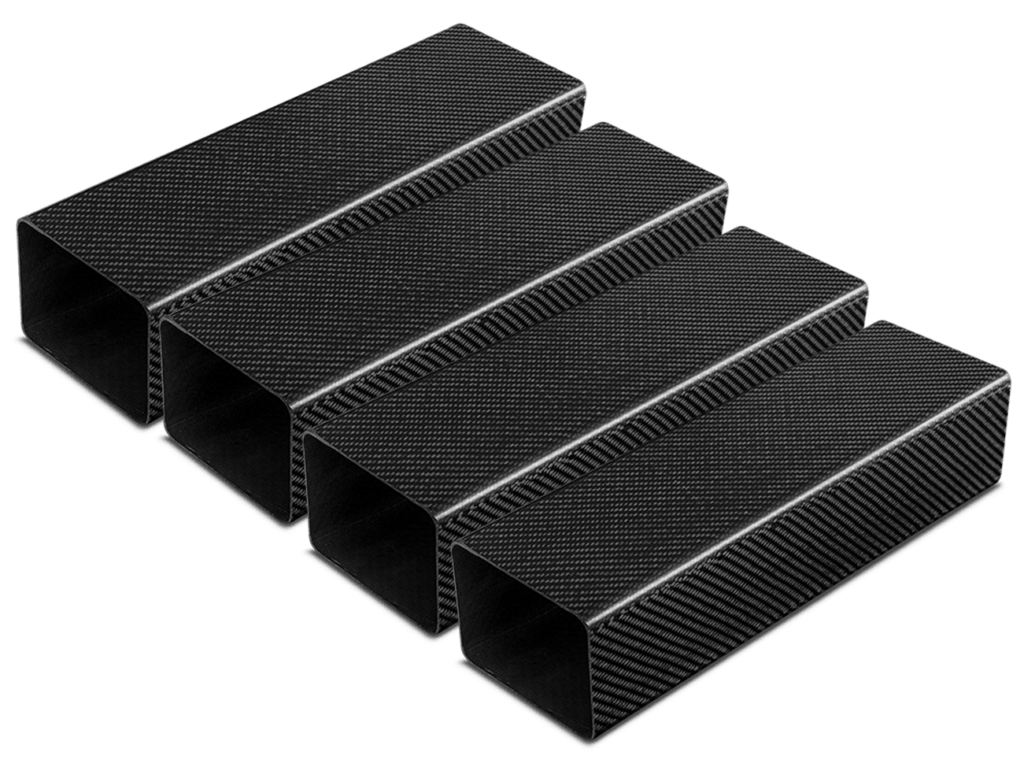

NitPro Composites manufactures high-performance carbon fiber prepreg square tubes, also known as carbon fiber box sections or CFRP square profiles, for applications requiring high bending stiffness, torsional rigidity, low weight, and dimensional accuracy. Manufactured using precision roll-wrapping and compression molding of pre-impregnated carbon fiber, these square tubes provide consistent mechanical performance and structural integrity across prototype and production volumes.
The closed square geometry offers excellent resistance to bending and torsion while providing flat surfaces for easier mounting, bonding, bolting, and integration. Available in 3K and 12K carbon fiber, multiple weave patterns, engineered fiber orientations, and gloss or matte finishes, NitPro carbon fiber square tubes can be customized to meet specific structural and dimensional requirements.
The square profile provides flat faces and a closed-box structure, making these tubes particularly suitable for applications exposed to combined bending and torsional loads. They are commonly used in drone airframes, robotics, structural frames, automation equipment, camera systems, and precision instrumentation.
Why Choose Square Over Round Carbon Fiber Tubes?
The square cross-section provides several advantages when compared with conventional round carbon fiber tubes.
Higher Bending Stiffness in Planar Directions
A square profile can provide a high second moment of area in its horizontal and vertical planes, offering strong resistance to lateral deflection. This makes carbon fiber square tubes suitable for structural frames, robot arms, UAV booms, and other applications where controlled bending is important.
Superior Torsional Resistance
The closed-box geometry provides high torsional stiffness and is particularly useful for structures exposed to combined bending and twisting loads. Applications such as camera crane arms, telescopic members, robotics, and automation equipment can benefit from the structural efficiency of a square profile.
Easier Integration and Mounting
Flat faces make square carbon fiber tubes easier to join, bolt, bond, and interface with standard hardware. They can simplify assembly and reduce the need for specialized brackets or rotating clamps.
Properties of our square tubes
| Parameter | Details |
|---|---|
| Cross Section | Square / hollow box profile |
| Carbon Fiber Tow | 3K and 12K |
| Fiber Grades | Application-dependent |
| Prepreg Patterns | Plain weave, twill weave, UD |
| Fiber Orientation | 0°, 90°, ±45° and custom combinations |
| Matrix System | Epoxy resin |
| Thermal Performance | Up to 125°C continuous with standard system |
| Surface Finishes | 3K gloss, 3K matte, custom ground |
| Wall Thickness | Customizable |
| Outer Dimensions | Customizable |
| Length | Cut-to-length available |
| Customization | Ply count, orientation, dimensions and finishes |
Custom outer dimensions, wall thicknesses, fiber architectures, hybrid laminates, surface finishes, cut-to-length requirements, and machined end features can be developed according to application requirements.
Key Performance Advantages of Carbon Fiber Prepreg Square Tubes
High Strength-to-Weight Ratio
Carbon fiber prepreg square tubes provide high specific strength and stiffness at significantly lower weight than conventional steel and aluminium structures. According to the supplied design specification, replacing a steel square section with an equivalent CFRP square section can reduce structural weight by 60–75%, depending on the specific design and load requirements.
High Bending and Torsional Stiffness
Engineered fiber orientations allow the laminate to be optimized for specific loading conditions. 0° and 90° plies can provide balanced directional stiffness, while ±45° plies can enhance resistance to torsional loading.
Dimensional Stability
The controlled prepreg manufacturing process provides uniform resin distribution and low void content, supporting consistent geometry and mechanical performance. This is particularly valuable in robotics, automation, aerospace, and precision instrumentation.
Corrosion Resistance
Carbon fiber composite does not oxidize like steel and offers strong resistance to corrosion from outdoor and chemically aggressive environments. This makes carbon fiber square tubes suitable for applications exposed to moisture, salt spray, and certain chemicals.
Thermal Stability
NitPro's standard epoxy matrix system offers a Tg of 125°C and continuous service capability up to 125°C. Higher-temperature resin systems are available on request for applications requiring enhanced thermal performance.
Low Coefficient of Thermal Expansion
Carbon fiber has a very low coefficient of thermal expansion in the fiber direction. Properly engineered prepreg laminates can therefore provide excellent dimensional stability during temperature changes, making them suitable for aerospace, optical, and precision applications.
Excellent Machinability
Carbon fiber prepreg square tubes can be cut, drilled, slotted, and end-milled using suitable carbide tooling. Correct feeds, speeds, and tooling geometries help minimize edge damage and delamination during machining.
Design Flexibility
Unlike standard pultruded profiles, prepreg square tubes can be engineered by adjusting fiber orientation, ply count, wall thickness, laminate architecture, and outer dimensions. This enables the structural profile to be tailored to axial, bending, torsional, or combined loading requirements.
Applications of Carbon Fiber Prepreg Square Tubes
Drones and UAVs
Carbon fiber square tubes can be used in UAV frames, airframe structures, booms, landing structures, and payload support systems. Their low weight and high stiffness help support efficient structural designs.
Aerospace and Defense
Aerospace applications can include structural members, support structures, antenna systems, equipment frames, and UAV components where low weight, dimensional stability, and structural reliability are important.
Robotics and Automation
Carbon fiber square tubes are suitable for robot arm links, automation frames, linear motion structures, actuator housings, and end-effectors requiring high stiffness with low moving mass.

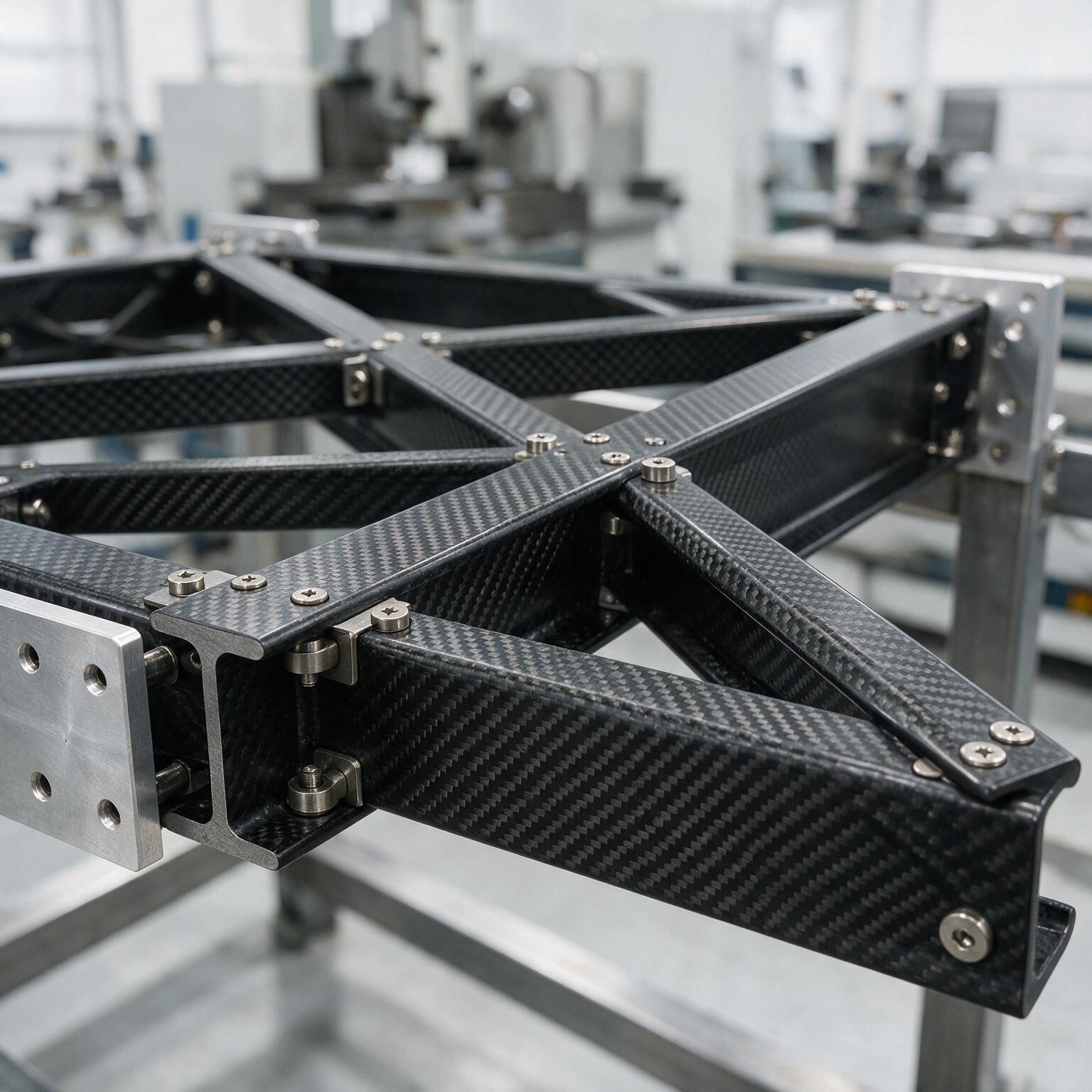

Structural Frames
The flat surfaces of square carbon fiber profiles make them suitable for lightweight structural frames, equipment supports, machine structures, and modular assemblies where simple mounting and joining are important.
Camera and Motion Systems
Camera crane arms, telescopic members, and other motion systems can benefit from the combination of low weight, torsional stiffness, and dimensional accuracy offered by carbon fiber square profiles.
Industrial Equipment
Carbon fiber square tubes can be incorporated into industrial equipment, automation systems, lightweight support structures, and components operating in environments where corrosion resistance and structural stiffness are required.
Properties of our square tubes
The primary difference between prepreg and pultruded carbon fiber profiles is the level of control over fiber architecture.
| Characteristic | Prepreg Square Tubes | Pultruded Carbon Fiber Profiles |
|---|---|---|
| Fiber Orientation | Multi-directional, engineered | Predominantly axial |
| Load Optimization | Bending, torsion and combined loads | Primarily axial loads |
| Ply Customization | High | Limited |
| Wall Thickness | Highly customizable | Profile-dependent |
| Geometry | Custom square profiles | Standard/profile-based |
| Surface Finish | Gloss, matte, custom | Typically standard |
| Structural Tuning | Application-specific | More limited |
| Production Economics | Higher for low volumes | Economical at high volume |
For applications involving combined bending and torsional loads, customized wall thickness, specific fiber architecture, or demanding dimensional requirements, prepreg square tubes provide greater design flexibility.
For high-volume applications dominated by axial loading, pultruded profiles may offer a more economical solution.
Custom Carbon Fiber Prepreg Square Tubes
Standard profiles do not always meet the requirements of a specific engineering application. NitPro Composites provides customized carbon fiber prepreg square tubes engineered around the required dimensions, laminate architecture, and load case.
Customization can include:
- Custom outer dimensions
- Custom inner dimensions
- Non-standard wall thicknesses
- 0°, 90°, ±45° and other fiber orientations
- Custom ply counts and laminate sequences
- 3K and 12K carbon fiber
- Plain, twill, and UD prepreg
- Gloss, matte, and ground finishes
- Hybrid carbon fiber, glass fiber, or Kevlar laminates
- Cut-to-length supply
- CNC-machined end features
- Prototype and production quantities
Whether you are developing a new component or scaling an existing design, share your dimensions, loading requirements, quantity, and intended application with the technical team to determine the appropriate carbon fiber square tube construction.
FAQ
What are carbon fiber prepreg square tubes?
Carbon fiber prepreg square tubes are hollow square-section structural components manufactured from pre-impregnated carbon fiber and epoxy resin. They combine low weight with high bending and torsional stiffness and can be customized for specific structural requirements.
What is the advantage of a square carbon fiber tube over a round tube?
Square tubes provide flat mounting faces and a closed-box geometry that can offer high bending and torsional stiffness. The flat surfaces also simplify joining, bolting, bonding, and integration with other components.
What carbon fiber options are available?
NitPro offers 3K and 12K carbon fiber tow, with plain weave, twill weave, and unidirectional configurations. Fiber orientation and laminate architecture can be customized according to the application.
What fiber orientations can be used?
Prepreg square tubes can incorporate 0°, 90°, ±45° and other custom fiber orientations. The layup can be engineered to optimize axial stiffness, bending performance, torsional rigidity, or combined-load performance.
What surface finishes are available?
Standard options include 3K gloss and 3K matte, with custom ground finishes available according to application requirements.
Are carbon fiber square tubes suitable for robotics?
Yes. Their combination of high stiffness, low weight, dimensional stability, and customizable fiber orientation makes them suitable for robot arms, actuator structures, automation equipment, and other precision motion systems.
Can carbon fiber square tubes be machined?
Yes. NitPro prepreg square tubes can be cut, drilled, slotted, and end-milled using appropriate carbide tooling and machining parameters.
Can you manufacture custom carbon fiber square tubes?
Yes. NitPro can customize the outer and inner dimensions, wall thickness, fiber orientation, ply count, laminate architecture, surface finish, length, and machined end features according to application requirements.
Are prototype quantities available?
Yes. Prototype and production quantities can be supported, allowing engineers to develop, test, and qualify a design before moving to larger-volume production.
